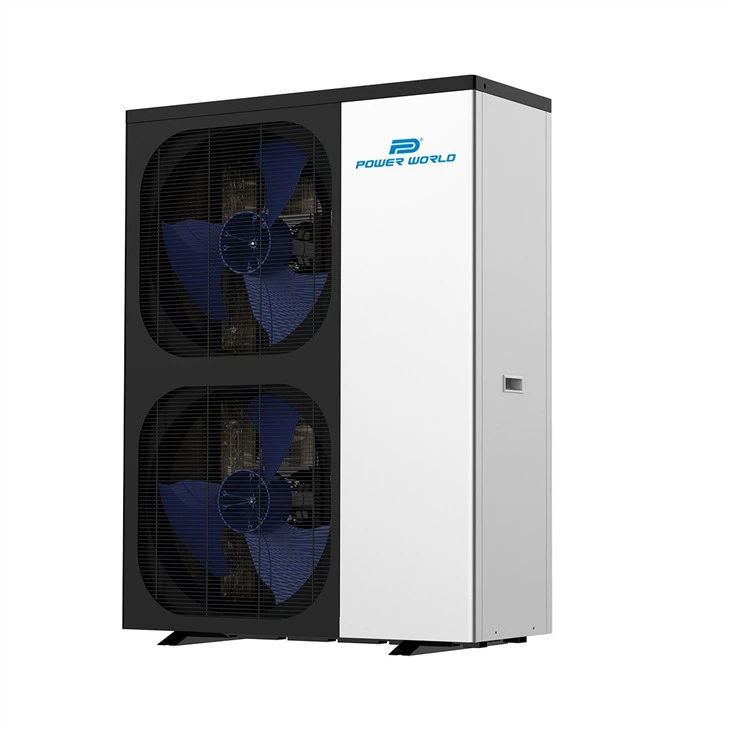

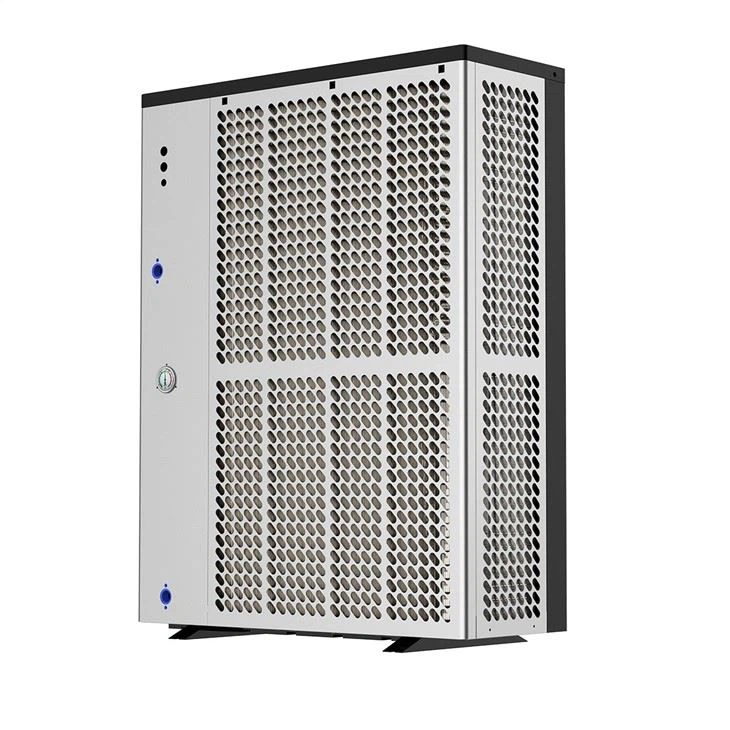

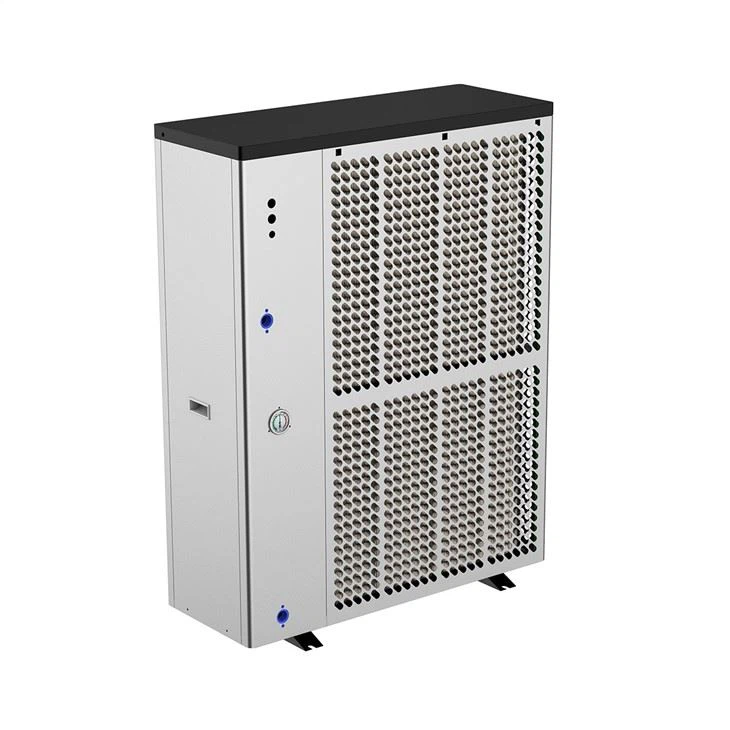

PowerWorld EVI DC inverter heat pump with CAREL controller not only enables the unit to have high-efficiency performance, but its excellent control logic ensures that the unit runs stably at the ultra-low temperature of -30°C, easily creating a warm and comfortable home for users.

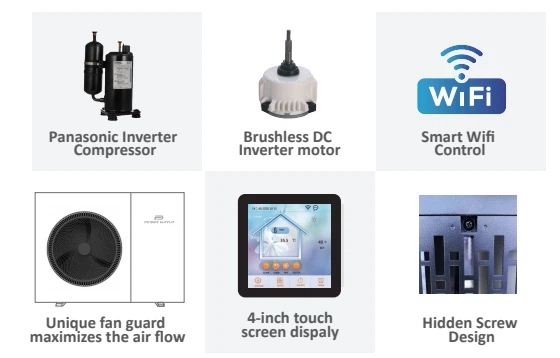

Feature

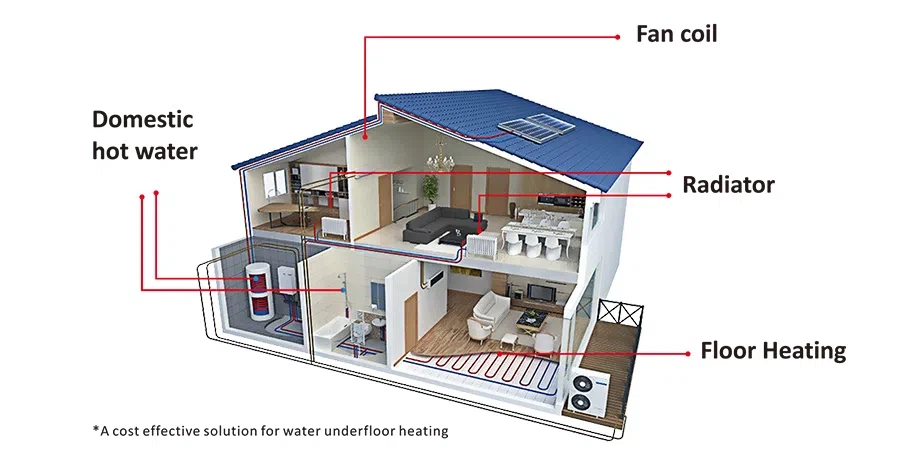

•Triple Supply of Heating, Cooling, and DHW;
•Remote Wi-Fi and Internet of Things (loT) Remote Control;
•Multiple Noise Reduction Processes;
•Two Electric Heater Ports for Higher Heating Needs;
•Precise Temperature Control ±0.1°C;
•Four Operating Modes Powerful, Smart, Silent, and Vacation.
Products Specification
|
Product model |
PW030-DKZLRS-A |
PW040-DKZLRS-A |
PW050-DKZLRS-A |
PW060-DKZLRS-A |
PW080-DKZLRS-A |
PW0100-DKZLRS-A
|
|
|
Heating |
Heating Capacity Range (kW) |
1.57~8.40 |
4.40~13.00 |
5.9~18.2 |
7.5~23.0 |
10.2~28.0 |
12.8-35.0 |
| Heating input Range (kW) |
0.32~1.87 |
0.90~3.02 |
1.20~4.11 |
1.53~5.23 |
2.07~6.36 |
2.61~7.99 |
|
| current Range (A) |
1.42~8.30 |
1.39~4.68/ |
1.86~6.37/ |
2.37~8.11 |
3.70~11.4 |
4.67~14.3 |
|
| COP Range |
4.49~4.91 |
4.30~4.90 |
4.43~4.92 |
4.40~4.90 |
4.40~4.92 |
4.38~4.90 |
|
|
Cooling |
Cooling capacity Range (kW) |
0.99~6.22 |
2.80~8.20 |
3.81~11.53 |
4.73~14.6 |
6.54~19.8 |
8.13~24.6 |
| Cooling input power(kW) |
0.29~2.18 |
0.85~3.31 |
1.11~4.05 |
1.39~5.14 |
1.92~6.97 |
2.42~8.75 |
|
| current Range (A) |
1.28~9.67 |
1.32~5.13/ |
1.72~6.28/ |
2.16~7.97 |
3.43~12.5 |
4.33~15.6 |
|
| EER Range |
2.85~3.41 |
2.48~3.29 |
2.85~3.43 |
2.84~3.40 |
2.84~3.40 |
2.81~3.36 |
|
|
DHW |
Heating capacity Range (kW) |
1.28~6.81 |
3.52~10.50 |
4.80~14.72 |
6.1~18.5 |
12.3~20.4 |
13.6~22.6 |
| Heating input Range (kW) |
0.31~2.13 |
0.88~3.39 |
1.17~4.60 |
1.53~5.97 |
2.8~5.37 |
3.09~5.95 |
|
| current Range (A) |
1.38~9.45 |
1.36~5.26/ |
1.82~7.15/ |
2.37~9.26 |
5.0~9.6 |
5.52~10.6 |
|
| COP Range |
3.2~4.1 |
3.1~4.0 |
3.2~4.1 |
3.1~4.0 |
3.8~4.4 |
3.8~4.4 |
|
|
Refrigerant |
R32 |
||||||
|
Power supply |
230V/1Ph/50-60Hz |
230V/1Ph/50-60Hz 380V/3Ph/50-60Hz |
230V/1Ph/50-60Hz 380V/3Ph/50-60Hz |
380V/3Ph/50-60Hz |
|||
|
Working area |
-30~43℃ |
||||||
|
Water circulation (m³/H) |
1.4 |
2.2 |
3.1 |
4.0 |
4.8 |
6.0 |
|
|
Water pressure drop (kPa) |
31 |
25 |
35 |
45 |
40 |
50 |
|
|
IP Grade (Level of protection) |
IPX4 |
IPX4 |
IPX4 |
IPX4 |
IPX4 |
IPX4 |
|
|
Anti-electric shock Rate |
I |
I |
I |
I |
I |
I |
|
|
Noise (dB(A)) |
≤53 |
≤55 |
≤57 |
≤58 |
≤62 |
≤66 |
|
|
Net weight/Gross weight(kg) |
110/120 |
140/150 |
170/180 |
180/190 |
210/220 |
230/240 |
|
|
Diameter of pipe (mm) |
DN25 |
DN25 |
DN25 |
DN25 |
DN32 |
DN32 |
|
|
Body size(W*D*H) (mm) |
970×475×835 |
1100×475×985 |
1050×480×1330 |
1050×480×1330 |
1160×500×1580 |
1160×500×1580 |
|
|
Loading quantity (20GP/40GP/40HQ) |
44/88/88 |
44/88/88 |
22/46/46 |
22/46/46 |
18/40/40 |
18/40/40 |
|
|
ERP Level (35°C) |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
|
ERP Level (55°C) |
A++ |
A++ |
A++ |
A++ |
A++ |
A++ |
|
|
Operating water temperature (℃) DHW |
9~55℃ |
||||||
|
Operating water temperature (℃) heating |
9~50℃ |
||||||
|
Operating water temperature (℃) cooling |
7~35℃ |
||||||
