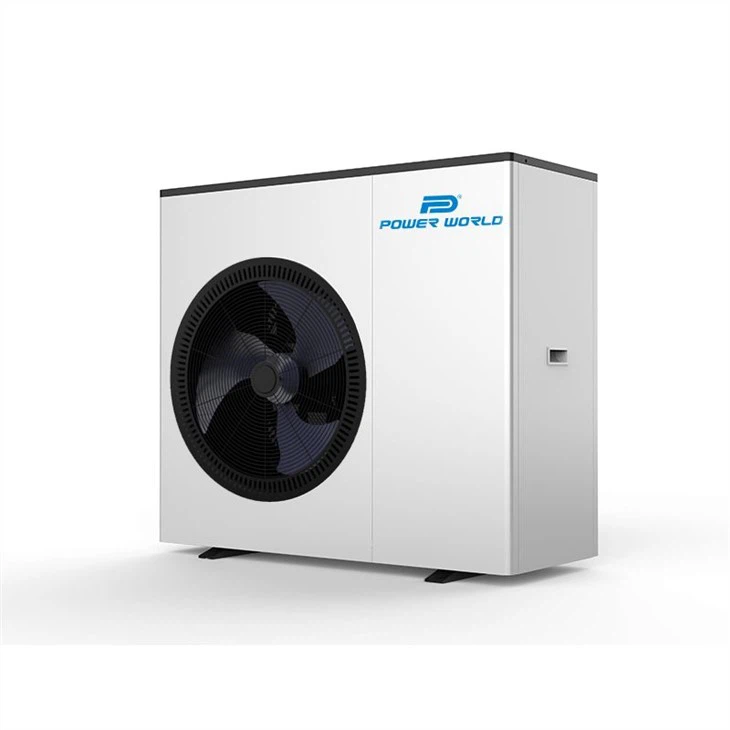

R32 Home Heating Monoblock Heat Pump

Name: China Custom R32 Home Heating Monoblock Heat Pump Suppliers Factory
Brand: Power World
SKU: 190185736

Series： PowerWorld Easylife Series
Energy Level：A+++.
Working Area：-30℃ to 43℃.
Heating Capacity：8.4kw-35kw.
Technology： Full DC Inverter.

Send Inquiry

Product Introduction Product Parameters

Products Feature

Full DC Inverter Technology

PowerWorld Easylife series heat pumps adopt a whole inverter Panasonic twin-rotary compressor and inverter brushless motor. With this technology, users can enjoy a maximum level of comfort at the lowest costs.

A+++ Energy Level

Power World heat pump highlights higher and higher energy efficiency.

Our Easylife Series heat pump has gained an A+++ energy label and passed

ERP test report issued by TÜV SÜD.

A+++ Energy Level

Intelligent Water Temperature Adjustment

The unique control logic enables our Easylife series heat pump to adjust the outlet water temperature intelligently, according to the real-time changing ambient temperature. Thanks to this function, our users can enjoy greater comfort and save more bills.

Intelligent Water Temperature Adjustment

R32 Low GWP Refrigerant

Reducing and preventing global warming is an important mission of PowerWorld. R32 used in PowerWorld's Easylife series heat pump has a GWP of only one-third compared to R410A. Besides, 30% of refrigerant is less needed for R32 heat pump systems than R410A ones.

R32 Low GWP Refrigerant

Global Application Potential

With the below features, the PowerWorld Easylife Series heat pump can be widely used:

Heating, Cooling, and DHW functions for all year-round running.

● EVI technology ensures a smooth operation from -30℃ to 43℃.

● Various Capacity Selection from 8 ~ 30 kW for different houses.

● Wide Voltage Range ( 170-254V for single phase, 320-460V for 3 phase)

Home Heating Monoblock Heat Pump

Hot Tags: r32 home heating monoblock heat pump, triple air to water heat pump, triple air-to-water heat pump, Commercial Monobloc Heating Air To Water Heat Pumps, R32 Heating Heat Pump, Air to water heat pump, Triple Heat Pump

Product model		PW030-DKZLRS-A	PW040-DKZLRS-A	PW050-DKZLRS-A	PW060-DKZLRS-A	PW080-DKZLRS-A	PW0100-DKZLRS-A
Heating	Heating Capacity Range (kW)	1.57~8.40	4.40~13.00	5.9~18.2	7.5~23.0	10.2~28.0	12.8~35.0
	Heating input Range (kW)	0.32~1.87	0.90~3.02	1.20~4.11	1.53~5.23	2.07~6.36	2.61~7.99
	Current Range (A)	1.42~8.30	1.39~4.68/ 4.12~13.8	1.86~6.37/ 5.49~18.8	2.37~8.11	3.70~11.4	4.67~14.3
	COP Range	4.49~4.91	4.30~4.90	4.43~4.92	4.40~4.90	4.40~4.92	4.38~4.90
Cooling	Cooling capacity Range (kW)	0.99~6.22	2.80~8.20	3.81~11.53	4.73~14.6	6.54~19.8	8.13~24.6
	Cooling input power(kW)	0.29~2.18	0.85~3.31	1.11~4.05	1.39~5.14	1.92~6.97	2.42~8.75
	Current Range (A)	1.28~9.67	1.32~5.13/ 3.89~15.1	1.72~6.28/ 5.08~18.5	2.16~7.97	3.43~12.5	4.33~15.6
	EER Range	2.85~3.41	2.48~3.29	2.85~3.43	2.84~3.40	2.84~3.40	2.81~3.36
DHW	Heating capacity Range (kW)	1.28~6.81	3.52~10.50	4.80~14.72	6.1~18.5	12.3~20.4	13.6~22.6
	Heating input Range (kW)	0.31~2.13	0.88~3.39	1.17~4.60	1.53~5.97	2.8~5.37	3.09~5.95
	Current Range (A)	1.38~9.45	1.36~5.26/ 4.03~15.5	1.82~7.15/ 5.35~21.1	2.37~9.26	5.0~9.6	5.52~10.6
	COP Range	3.2~4.1	3.1~4.0	3.2~4.1	3.1~4.0	3.8~4.4	3.8~4.4
Refrigerant	R32
Power supply		230V/1Ph/50-60Hz	2.230V/1Ph/50-60Hz / 380V/3Ph/50-60Hz	2.230V/1Ph/50-60Hz / 380V/3Ph/50-60Hz	380V/3Ph/50-60Hz
Working area		-30~43℃
Water circulation （m³/H）		1.4	2.2	3.1	4.0	4.8	6.0
Water pressure drop （kPa）		31	25	35	45	40	50
IP Grade (Level of protection)		IPX4	IPX4	IPX4	IPX4	IPX4	IPX4
Anti-electric shock Rate		I	I	I	I	I	I
Noise (dB(A))		≤53	≤55	≤57	≤58	≤62	≤66
Net weight/Gross weight(kg)		110/120	140/150	170/180	180/190	210/220	230/240
Diameter of pipe (mm)		DN25	DN25	DN25	DN25	DN32	DN32
Body size(WDH) (mm)		970×475×835	1100×475×985	1050×480×1330	1050×480×1330	1160×500×1580	1160×500×1580
Loading quantity (20GP/40GP/40HQ)		44/88/88	44/88/88	22/46/46	22/46/46	18/40/40	18/40/40
ERP Level (35°C)		A+++	A+++	A+++	A+++	A+++	A+++
ERP Level (55°C)		A++	A++	A++	A++	A++	A++
Operating water temperature (℃) DHW		9~55℃
Operating water temperature (℃) heating		9~50℃
Operating water temperature (℃) cooling		7~35℃
