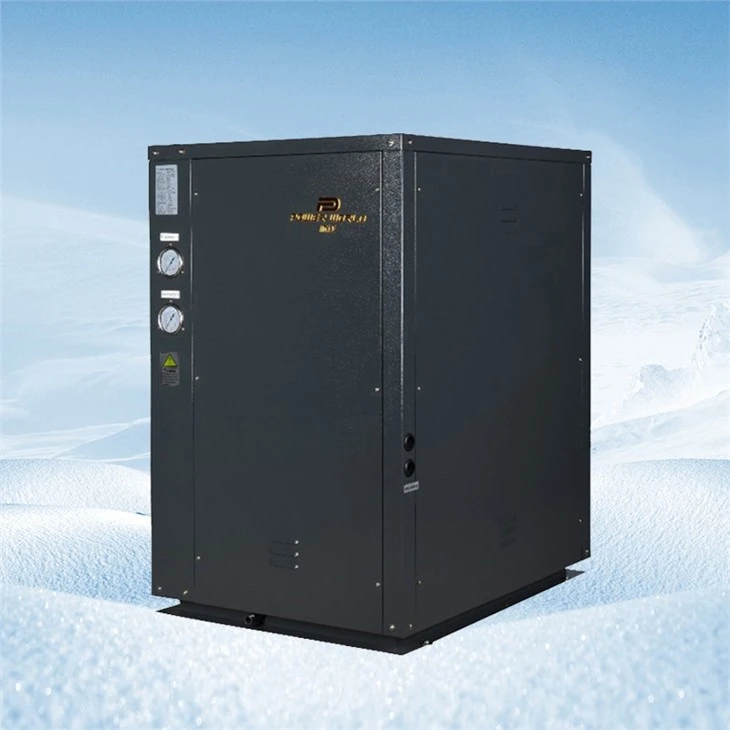

Water Source Heat Pump

Type: Water and Ground Source.
Refrigerant:R410A and R407C.
Highest Outlet Temp(℃)：60℃.
Send Inquiry

Product Introduction Product Parameters

Thanks to the working principle of water to water heat pump system, the Water/Ground Source Series heat pump has a high heat exchange efficiency, which enables the unit can stable and reliably operate in extremely cold areas, ensuring the heating and cooling needs of the house all year round. It is suitable for areas with rich geothermal or hydro energy resources.



Feature：

1. Heating capacity range 8KW~115KW

2. Environmental friendly gas R407c

3. Strong frost resistance

4. High heat exchange efficiency

5. Long service life

6. Suitable for areas with rich geothermal/hydro energy resources





Hot Tags: water source heat pump



Product model PF020-DFXRS-S PF030-DFXRS-S PF030-DFXRS PF050-DFXRS PF060-DFXRS PF100-DFXRS PF120-DFXRS PF150-DFXRS PF200-DFXRS PF250-DFXRS PF300-DFXRS
Parameters Heating capacity (kW) 8.2 10.1 11.3 20.4 24.2 41.1 48.8 54.2 71.2 95 115
Input power (kW) 1.9 2.08 2.33 4.22 5.02 8.48 10.1 11.2 14.8 19.8 23.9
Rated current (A) 2.5 13 6 8.8 11.1 17.6 20.7 25.9 36.1 41.4 62
COP 4.32 4.86 4.85 4.83 4.82 4.85 4.83 4.84 4.81 4.80 4.81
Rated outlet hot water temperature (℃) 55 55 55 55 55 55 55 55 55 55 55
Highest outlet hot water temperature(℃) 60 60 60 60 60 60 60 60 60 60 60
Production capacity (L/H) 176 217 243 439 520 883 1049 1165 1530 2042 2472
Hot water Pipe size(mm) DN20 DN25 DN25 DN25 DN25 DN32 DN32 DN50 DN50 DN65 DN65
Heat source inlet water temperature(℃) 15 15 15 15 15 15 15 15 15 15 15
Heat source outlet water temperature(℃) 10 10 10 10 10 10 10 10 10 10 10
Heat source circulation water capacity(L/H) 2000 3000 3400 5800 6700 11500 13500 15500 21200 27200 34500
Heat source pipe size(mm) DN20 DN25 DN25 DN25 DN25 DN32 DN32 DN50 DN50 DN65 DN65
IP Grade (Level of protection) IPX4 IPX4 IPX4 IPX4 IPX4 IPX4 IPX4 IPX4 IPX4 IPX4 IPX4
Anti-electric shock Rate I I I I I I I I I I I
Noise (dB(A)) ≤48 ≤55 ≤55 ≤58 ≤58 ≤62 ≤62 ≤66 ≤66 ≤70 ≤70
Net weight(kg) 80 90 90 125 135 280 300 372 482 582 650
Gross weight(kg) 85 96 96 135 145 295 320 412 532 642 700
Standard Configuration Metal plate Galvanized steel/Spray/Gray
Body size(W*D*H) 650*450*650 810*635*1000 810*635*1000 810*635*1000 810*635*1000 1010*590*1400 1010*590*1400 1320*840*1080 1750*1120*900 1750*1120*900 2000*1120*900
Packing size(W*D*H) 750*550*850 910*735*1200 910*735*1200 910*735*1200 910*735*1200 1110*690*1600 1110*690*1600 1420*940*1280 1850*1220*1100 1850*1220*1100 2100*1220*1100
Loading quantity (20GP/40GP/40HQ) 60/120/180 18/39/78 18/39/78 18/39/78 18/39/78 16/34/34 16/34/34 8/16/32 8/18/18 8/18/18 8/18/18
Refrigerant R410A R407C
Power supply 220V/50Hz 220V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz

Shell and coiled Shell and coiled Shell and coiled Shell and coiled
Expansion valve Danfoss /Emerson Danfoss /Emerson
AC contactor (220V-18A) (220V-25A) (220V-12A) (220V-18A) (220V-25A) (220V-18A)*2 (220V-25A)*2 (220V-32A)*2 (220V-38A)*2 (220V-38A)*2 (220V-50A)*2
Thermorelay (12-18A)*1 (12-18A)*1 (6-9A)*1 (9-13A)*1 (9-13A)*1 (9-13A)*2 (9-13A)*2 (9-13A)*2 (18-26A)*2 (18-26A)*2 (24-36A)*2
Low-voltage switch 0.15/0.32MPa 0.15/0.32MPa 0.15/0.32MPa 0.15/0.32MPa 0.15/0.32MPa 0.15/0.32MPa 0.15/0.32MPa 0.15/0.32MPa 0.15/0.32MPa 0.15/0.32MPa 0.15/0.32MPa
High-voltage switch 3.0/3.6MPa 3.0/3.6MPa 3.0/3.6MPa 3.0/3.6MPa 3.0/3.6MPa 3.0/3.6MPa 3.0/3.6MPa 3.0/3.6MPa 3.0/3.6MPa 3.0/3.6MPa 3.0/3.6MPa
The power line connects with the unit 3*2.5mm² 3*2.5mm² 3*2.5mm²+2*1.5mm² 3*4mm²+2*2.5mm² 3*6mm²+2*2.5mm² 3*6mm²+2*2.5mm² 3*6mm²+2*2.5mm² 3*10mm²+2*4mm² 3*10mm²+2*4mm² 3*16mm²+2*6mm² 3*16mm²+2*6mm²
Remark: hot water working condition, Initial water temperature 15℃, Outlet water temperature 55℃, heat source 10℃/15℃.
